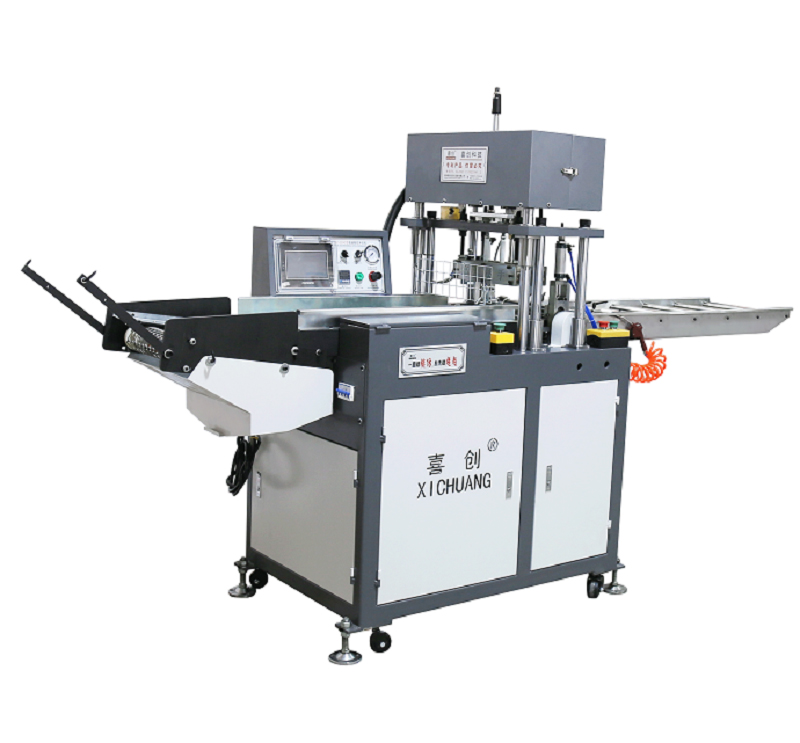

1. Used for cutting various EVA material soles, heels, half forks, and inner padding.
2. Using the heating principle to reduce machine damage and energy consumption. The edges of the cut material are smooth and aesthetically pleasing.
3. This machine is fully automatic punching and cutting, saving labor, reducing labor intensity, high efficiency, and can achieve more than a few signals of traditional cutting machines
4. Adopting advanced computer control systems, air pressure and other control components. Fully digital control system, easy to set up. With precise cutting and simple operation, it is an essential new product for upgrading and upgrading.
5. This machine is the latest product developed based on the 229A model, with a speed of 300 times per minute, and its advantages of fast, efficient, and safe.
型號
|
Mode
|
XC-229C
|
機(jī)器尺寸
|
Machinesize
|
3100x720x1500mm
|
電壓
|
Voltage
|
四相(三相火線一相零線)380V50HZFbur phase(Three phase line and Phase zero line
|
電機(jī)功率
|
Motorpower
|
2.2kw
|
加熱功率
|
Heating rower
|
3kw
|
最大沖裁厚度
|
Max cutting thickness
|
5-25mm
|
重量
|
Weight
|
700kg
|
壓力范圍
|
Pressurerange
|
0.3-0.6mpa(氣壓pressure)
|
產(chǎn)量
|
Yield
|
50000-100000雙/8小時(shí)(Double/hour)
|
|
